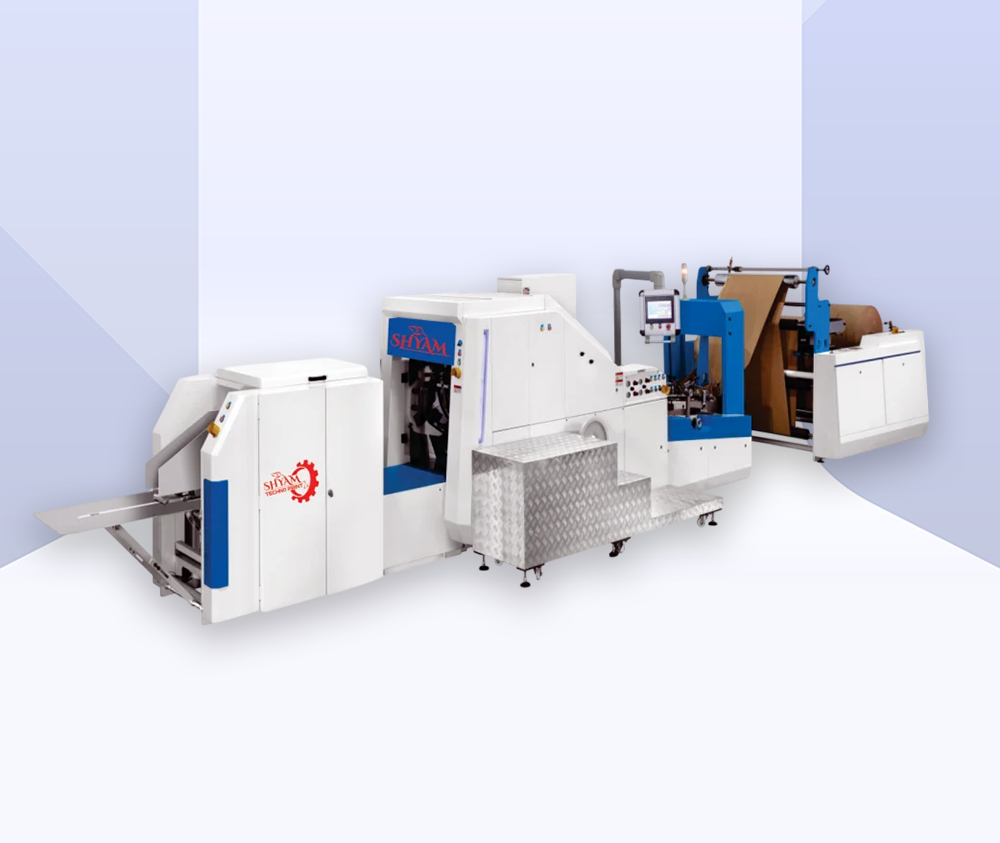

Square Bottom Paper Bag Making Machine
Square Bottom Paper Bag Making Machine
This machine is designed to manufacture square bottom paper bags without handles from paper roll and it is an ideal equipment for producing various sized paper bags fast by Implementing steps.
This machine can produce paper bags of wide range sizes. It can produce not only small size food bags but also big size.
| Model | STP – S360 | STP – S450 |
|---|---|---|
| Paper Bag Cutting Length | 275 – 530 mm | 275 – 530 mm |
| Paper Bag Width | 170 – 360 mm | 260 – 450 mm |
| Paper Bag Bottom Width | 60 – 180 mm | 80 – 180 mm |
| Paper Thickness | 60 – 160 gsm | 80 – 170 gsm |
| Max. Paper Bag Speed | 170 pcs/min. | 150 pcs/min. |
| Paper Roll Width | 530 – 1100 mm | 700 – 1250 mm |
| Max. Paper Roll Diameter | 1200 mm | 1200 mm |
| Paper Roller Inner Diameter | 76 mm | 76 mm |
| Machine Supply | 380V, 50Hz, three phase four wire | 380V, 50Hz, three phase four wire |
| Power | 15 Kw. | 15 Kw. |
| Weight | 8500 Kg. | 9700 Kg. |
| Dimension | L8600 x W1850 x H1800 mm. | L8600 x W2200 x H1900 mm. |
