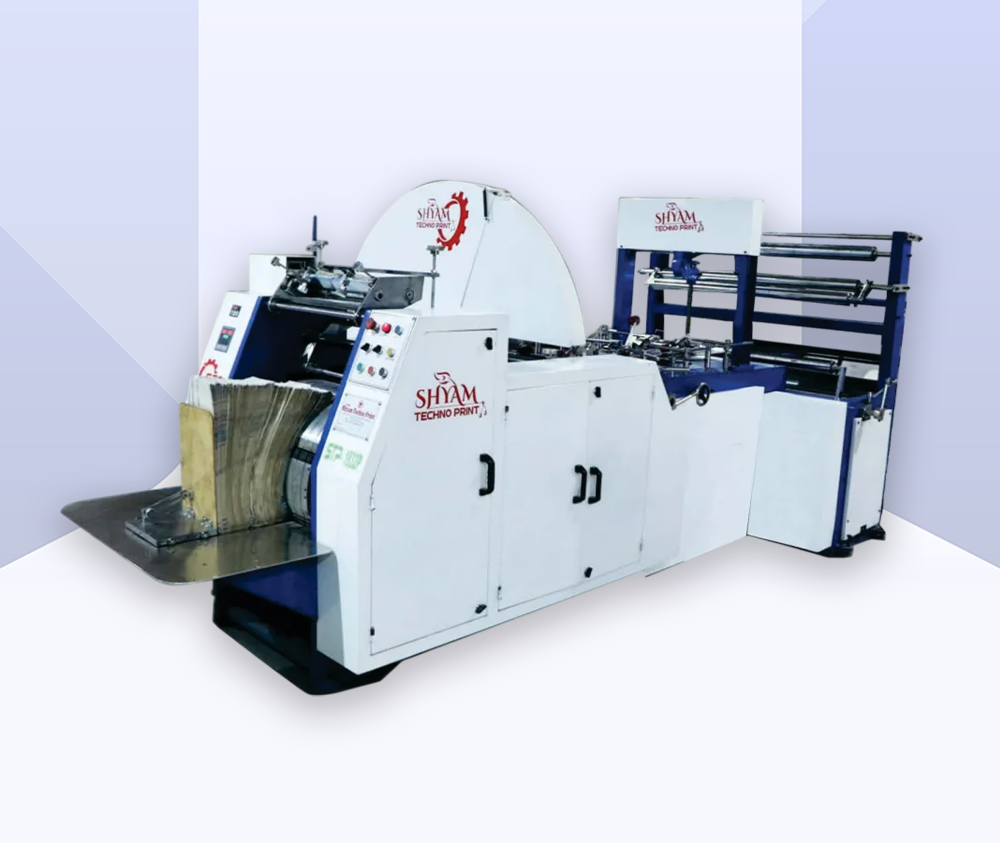

V Bottom Paper Bag Making Machine
V Bottom Paper Bag Making Machine
We are providing you India’s most advance Paper Bag Making Machine STP-PBM 0812/1018/1418/1824 Which is designed to produce the finest quality paper bag with high speed performance and accuracy .
| Model | STP PBM 0812 | STP PBM 1018 | STP PBM 1418 | STP PBM 1824 |
|---|---|---|---|---|
| Paper Bag Length | 80 – 300 mm | 150 – 450 mm | 150 – 450 mm | 180 – 610 mm |
| Paper Bag Width | 60 – 210 mm | 75 – 255 mm | 75 – 355 mm | 125 – 455 mm |
| Paper Thickness | 30 – 90 gsm | 30 – 100 gsm | 30 – 100 gsm | 30 – 120 gsm |
| Gusset | Optional | 0 – 100 mm | 0 – 100 mm | 0 – 170 mm |
| Max. Paper Bag Speed | 800 – 900 Bags/min | 500 Bags/min | 500 Bags/min | 400 Bags/min |
| Paper Roll Width | 150 – 430 mm | 250 – 740 mm | 250 – 950 mm | 250 – 1300 mm |
| Max. Roll Diameter | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Machine Supply | Single Phase | Three Phase | Three Phase | Three Phase |
| Total Power | 2 Kw | 3.7 Kw | 3.7 Kw | 5.7 Kw |
| Blade | 2 Blades | 4 Blades | 4 Blades | 2 Blades |
| Machine Weight | 1200 Kg | 2050 Kg | 2250 Kg | 4500 Kg |
| Machine Dimension | L3300 × W1600 × H1500 mm | L3600 × W1900 × H1500 mm | L3600 × W1900 × H1500 mm | L5000 × W2400 × H1750 mm |
